CUSCO Products List for 2023+ Toyota 5th Gen Prius 2023-2026 Updated in September 2023

[Models]

• MXWH60 - 2.0L Hybrid (M20A-FXS), Front-Wheel Drive / CVT

Designed and developed from countless road testing, CUSCO high performance products are all proudly MADE IN JAPAN since 1977. Inspiration from off road demand and designed for everyday use, our engineers crafted and delivered the best of both.

[Coilover Kit - New Release in September 2023]

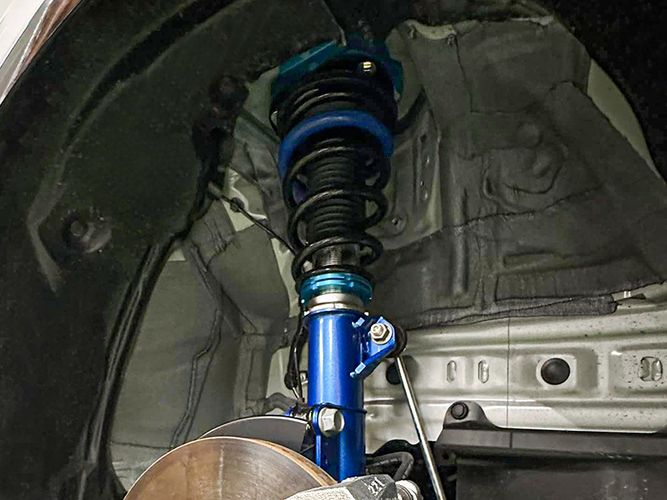

Street Zero-A Coilover Kit

Product Number

1A3 62N CN

MSRP

$1,700.00

JAN Code

• Front / Rear: Twin-Tube 40-way Damper Adjustable
• Front: Full threaded shock body for ride height adjustment.
• Rear: Threaded Spring Perch for ride height adjustment
• Default Spring Rate:
  • Front 5kgf/mm (Optional Spring Rate: N/A), Exclusive Design for Prius models
  • Rear 5kgf/mm (Optional Spring Rate: N/A), ID=65mm, L=250mm
• Default Ride Height (compare to stock):
  • Front -40mm (Adjustable Range -45mm to 0mm)
  • Rear -35mm (Adjustable Range -50mm to -20mm)
• Upper Mount:
  • Front: OE Style Rubber Upper Mount - Non-Camber Adjustable
  • Rear: Not included - Re-use OE Upper Mounts
• Overhaul: Available
• e-Con2 Remote Controller Compatibility: No

[Sway Bars]

• It helps to reduce the vehicle body roll during cornering.
• Additional benefits includes stability at high speed driving, install both front and rear for optimum performance.

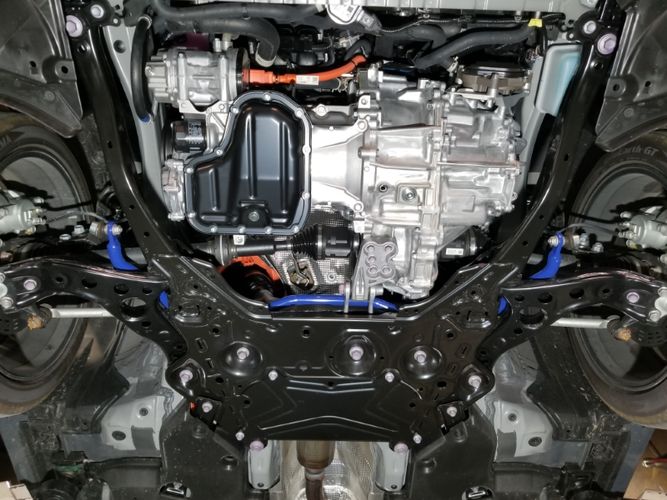

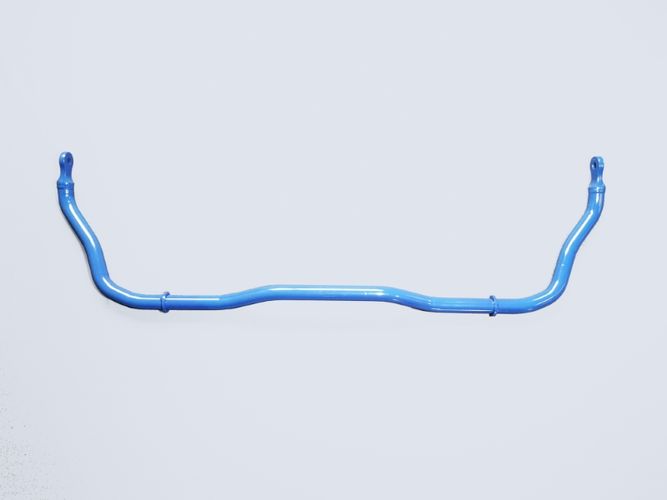

[Front] - New Design for New 5th Gen Prius Model

Material : High Strength Steel

Product Number

1A3 311 A26

MSRP

$374.00

JAN Code

Note : CUSCO OD=26mm Solid Steel Bar (OE 25.4mm Hollow, +46% increase), Bushings are NOT included and re-use OE bushings & brackets to install.

- Installation Time: 2.5 hours

[Rear]

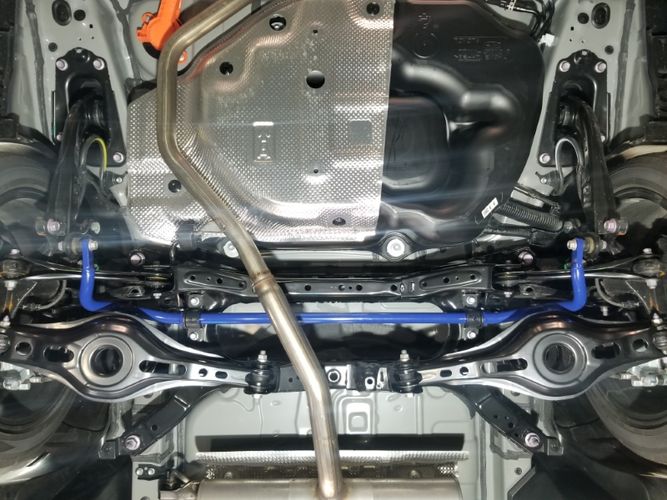

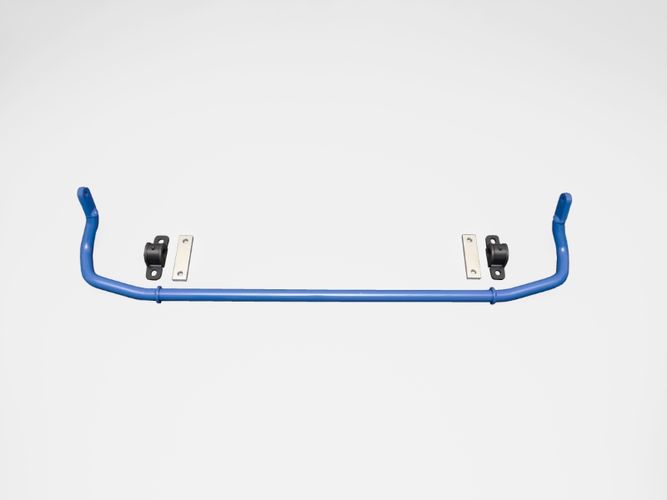

Rear Sway Bar Kit

Product Number

1A7 311 B26

MSRP

$374.00

JAN Code

Note : CUSCO OD=26mm Solid Steel Bar (OE 25.4mm Hollow, +42% increased) x2 Bushings & x2 Brackets are included.

- Installation Time: 1.0 hours

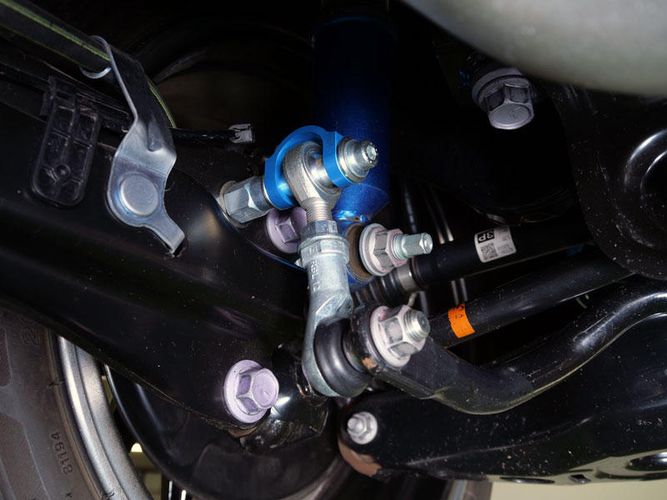

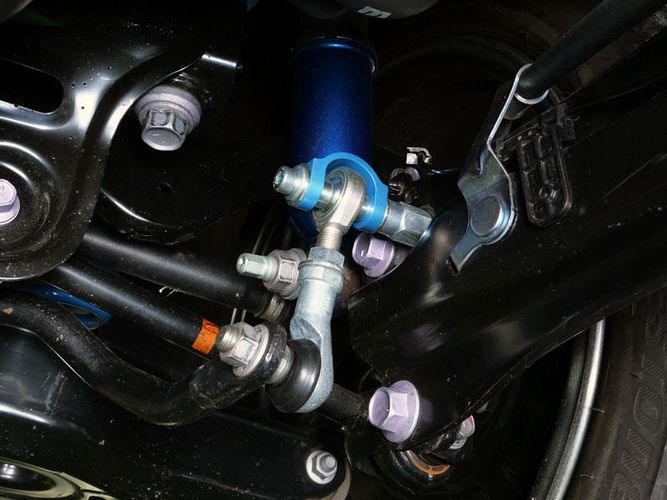

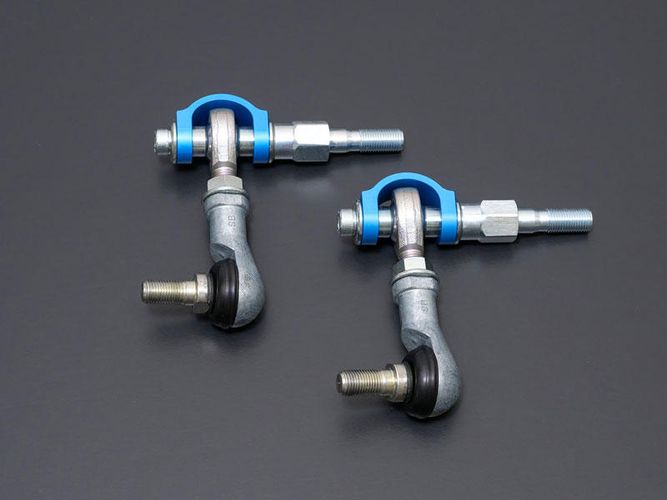

Rear Adjustable Sway Bar End-Link Set

Product Number

1C7 317 A

MSRP

$250.00

JAN Code

• Bolt-on / Direct OE Replacement Type
• Ball Joint
• Adjusting Range: 89 - 103 mm (OEM L=90mm)
• Set of 2 pcs.

[Power Brace]

CUSCO POWER BRACE is designed to increase chassis strength, eliminate body flex, vibrations in order to optimize the vehicle's handling. Beautifully crafted and anodized in CUSCO Blue for all weather. It uses existing mounting location for "bolt-on" and ensure enough ground clearance.

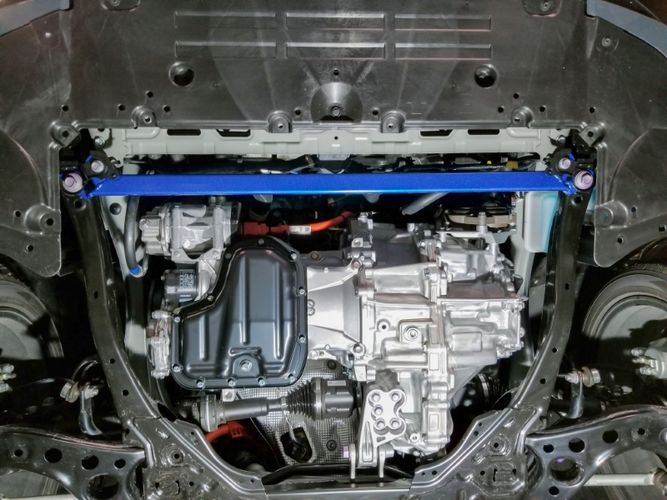

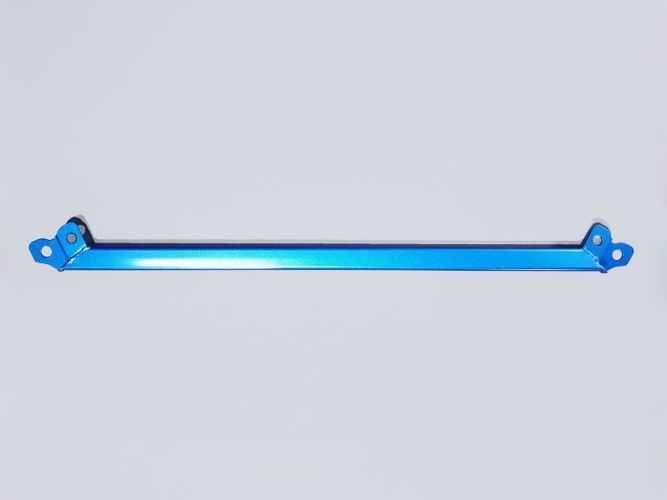

- Front Cross Member Brace - 1A3 492 F (New Design for New 5th Gen Prius Model)

Material : High Strength Steel Bar (STKM) t=1.6mm

Product Number

1A3 492 F

MSRP

$174.00

JAN Code

- Installation Time: 1.0 hours

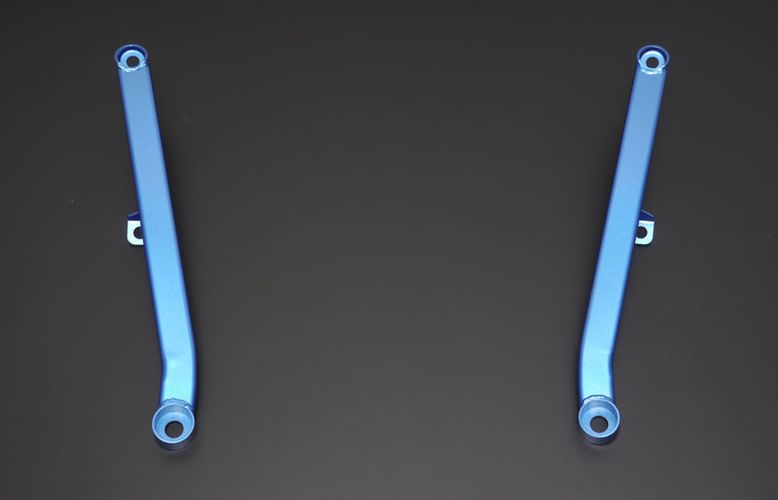

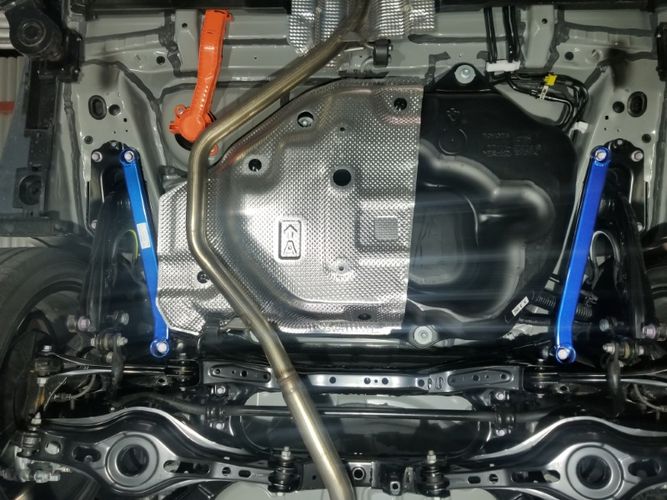

- Rear Brace (Front side) - 1A9 492 R

Rear Power Brace (Front Side)

Product Number

1A9 492 R

MSRP

$187.00

JAN Code

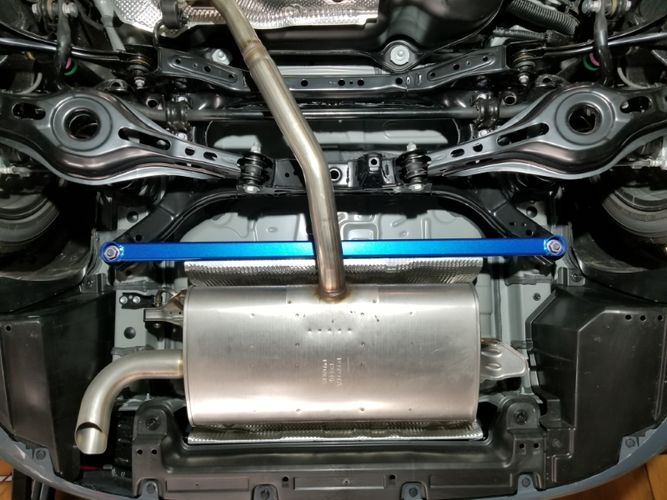

- Rear Brace (Rear side) - 1A3 492 RM (New Design for New 5th Gen Prius Model)

Rear Power Brace (Rear Side)

Product Number

1A3 492 RM

MSRP

$160.00

JAN Code

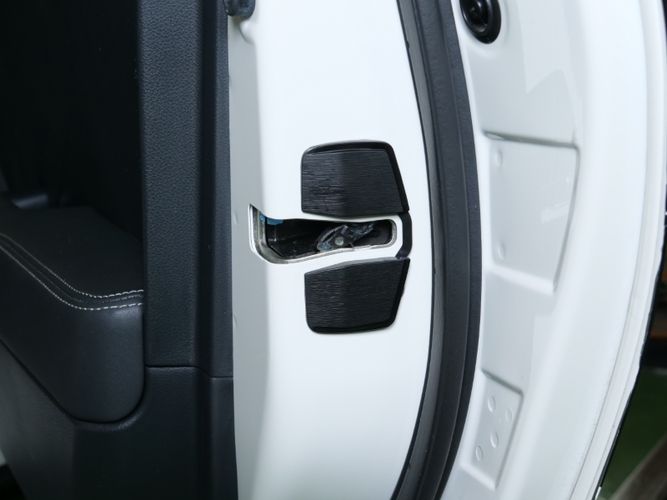

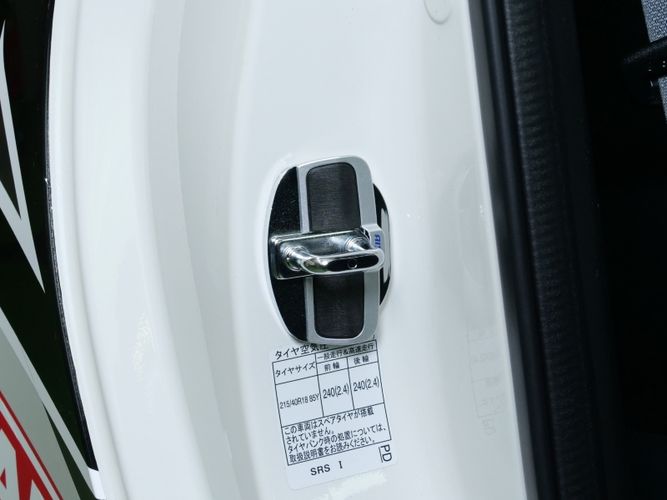

[Door Stabilizer Set - New Release in July 2023]

CUSCO universal Door Stabilizer is designed to increase chassis rigidity by filling a door and body gap. By eliminating excess gap between a door and body, it improves steering response and chassis rigidity. For example, when changing a lane on a freeway.

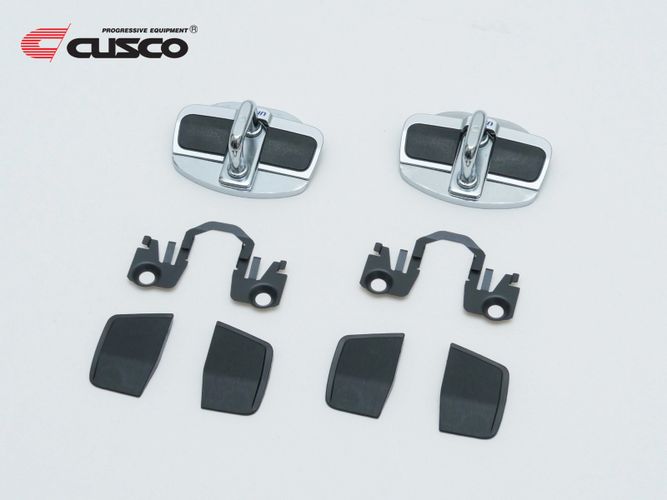

Door Stabilizer Set

Product Number

00B 066 A

MSRP

$170.00

JAN Code

Price: US$170.00 per pair (Total of 2)

***Require to order x2 sets for all 4-Door Models (Front Doors & Rear Doors)

***Please click this link for more details.

[Interior/Exterior Accessory Parts]

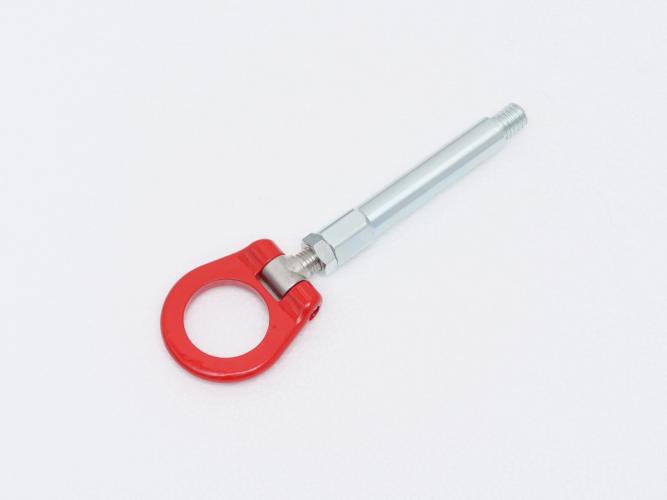

Front Swivel Type Tow Hook

Product Number

1H1 017 R

MSRP

$131.00

JAN Code

• Bolt-on
• Require to modify OE Tow Hook Cover

Rear Swivel Type Tow Hook

Product Number

1A7 017 F

MSRP

$131.00

JAN Code

• Bolt-on
• Require to modify OE Tow Hook Cover
